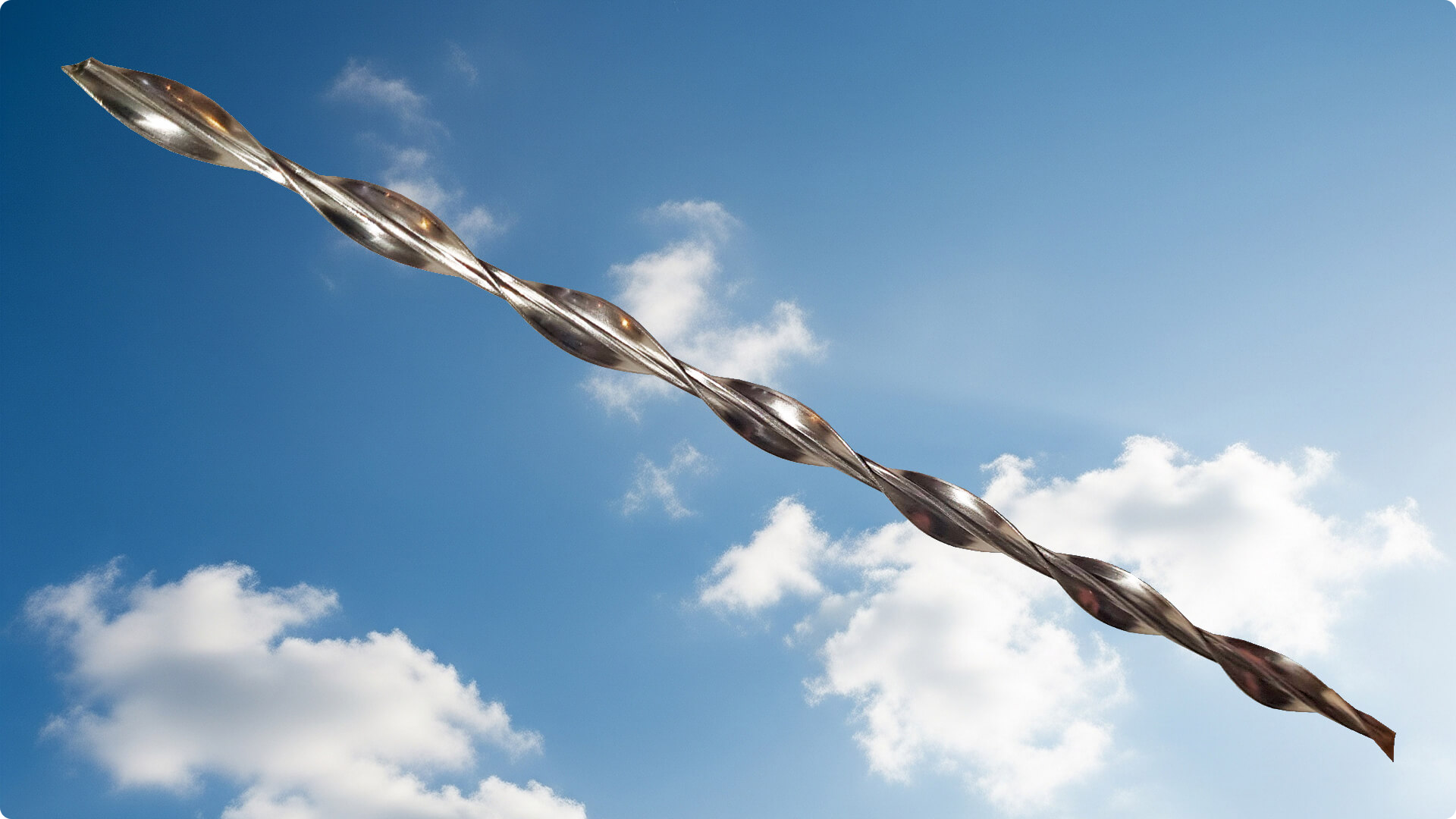

Owing to its helical shape and excellent mechanical properties Bar Flex has a vast use as remedial wall ties and masonry connectors. The hardened fins can be easily driven through the masonry units providing additional interlock and grip. Even a relatively short embedment in the masonry can develop strong anchorage force in the wall while maintaining its flexibility.
Dri Flex is a fast and effective, corrosion-resistant solution for remedial wall tie applications in cavity walls. Its flexible, stress-free installation and superior performance make it ideal for both modern buildings and heritage repairs where installations of vast number of fixings is required.
Drill a pilot hole at least 15 mm deeper than the Dri Flex length

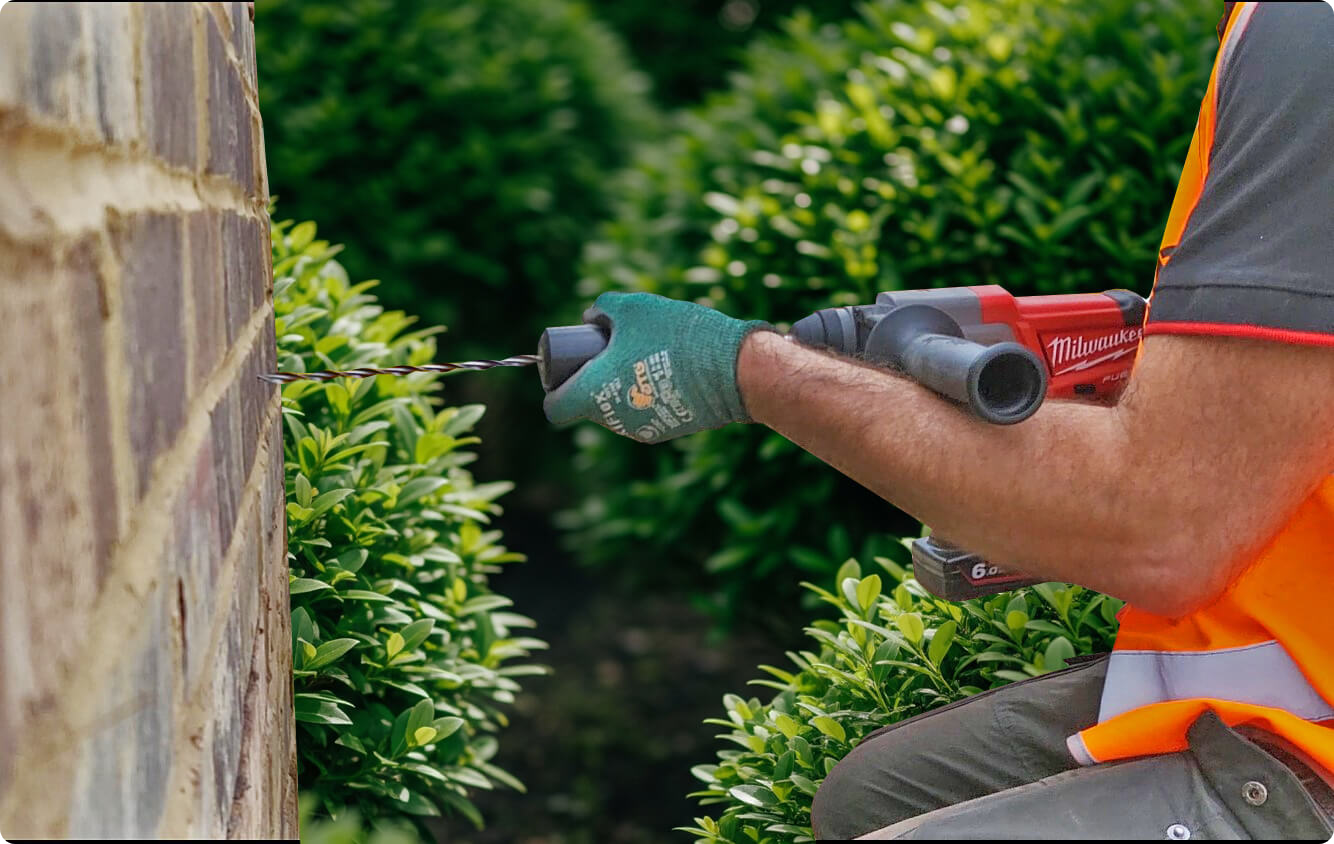

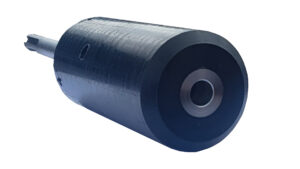

Use the Power Support Tool and SDS hammer drill to insert the tie (below)
Seal the hole using mastic or a colour-matched filler for a clean finish
Made from Grade 304 or 316 stainless steel
Tensile strength exceeds 10kN
Fire resistance: 30+ minutes
Hard outer fins grip into masonry
Soft core allows flexibility and absorbs stress
Standard walls: 2.5 ties per m² (450 mm vertical / 900 mm horizontal)
Minimum: 1.25 ties/m² (600 mm vertical / 1250 mm horizontal).
Around openings: Max. 300 mm vertical spacing and within 225 mm of edges
Leaves <90mm thick: 5 ties per m²
Custom densities: Higher tie densities are acceptable when needed — lower densities are not recommended
Dri Flex should be pre-tested before installation, as random post-installation testing is not feasible. Testing should follow BRE Digest 401 guidelines using a Target Load Test Unit, ensuring reliable anchorage in both the near and far leaf.
Typical proof load: ≤ 1 kN.
